TDL-2120
Specification


Modle No.

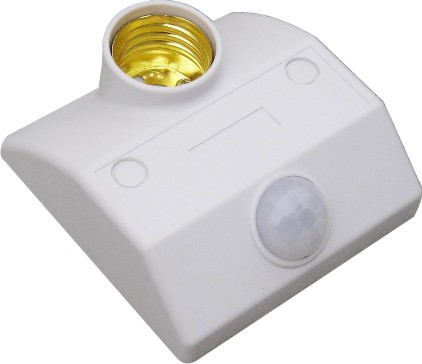

Lamp holderTDL-2120
Fuction discription
immediatepacking，thread lamp holder
Operating voltage
AC 100V~265V (50~60Hz)
Perating temp.
-20 °C ～ +50 °C
Static power
< 0.026W
Load power
incandescent lamp 45W,energy saving lamp 30W
Load capacity
incandescent lamp,energy saving lamp
Connecting style
220VAC connecting ,immediatepacking
Output mode
induction output
Light control range
120 Lux ± 20%
Delay shutdown time
16 S ± 20%
Induction mode
passive
Induction angle
140°coning angle
Detecting distance
5~8 M
Installing method

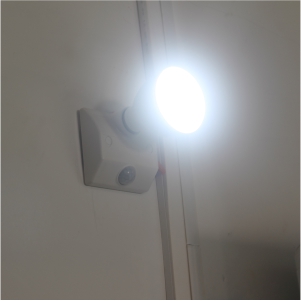

standard wall installation
Dimension/color
86*86mm / porcelaine
Range of application&Functions and Features
1.Automatic induction: when people enter into the range of induction,it will turn on,when people leave,it will turn off with delay.
2.It can be applied to corridor ,passageway, toilet,basement, warehouse,garage,etc., which have the function of automatic lighting, and control.
3.Photosensitive control:it adopting photoactive control,it doesn't turn on during daylight or in strong light environment.
4.Automatic random delay:After it turns on,in the delay period,if there is presence of people,it keeps on working until people leave,than turn on with delay.
5.Status indicator: efficient LED indicator,which is easy for installation and fault analysis.
6.Temperature compensation:tuodi specialized temperature compensation chip,which used to reducing the effect of temp. on detecting distance.
