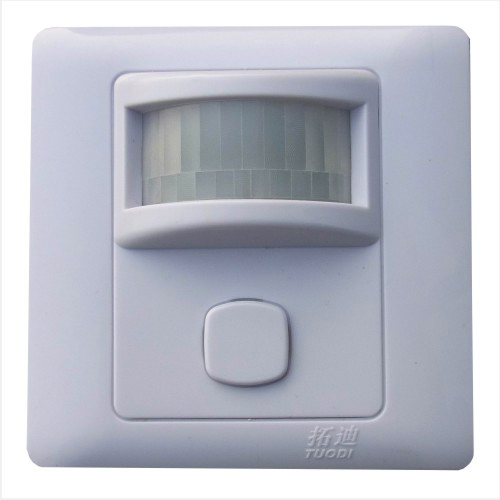

TDL-2180R
Specification

patent No.:201030293720.4

•unconspicuous movement(hands)detecting distance:5M
•walking detecting distance:10M
unconspicuous movement is the best choice,such as hands detecting



Model No.
TDL-2180R
Fuction discription
transwitch,any lights
Operating voltage
85V~265VAC (50~60Hz)
Perating temp.
-20 °C ~ +50 °C
Static power
< 0.016W
Load power
5W~200W
Load capacity
incandescent lamp,energy saving lamp,fluorescent lamp,exhaust fan
Connecting style
unipolarity
Output mode
infrared induction
Light control range
5 Lux ~ 500Lux ± 20% (adjustable)
Delay shutdown time
16~350 Secs ± 30% (adjustable)
Induction mode
passive
Induction angle
140°coning angle,all-direction
Detecting distance
8~10 M
Installing method
standard 86 modle,,wall installation,ceiling installation
Dimension/color
86 * 86 mm / porcelaine
Range of application&Functions and Features
1.Automatic induction: when people enter into the range of induction,it will turn on,when people leave,it will turn off with delay.

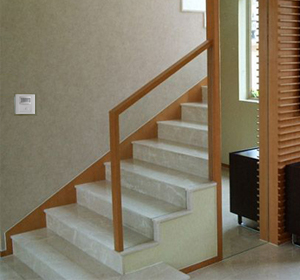

2.It can be applied to corridor ,passageway, toilet,basement, warehouse,garage,etc., which have the function of automatic lighting, and control.
3.Photosensitive control:it adopting photoactive control,it doesn't turn on during daylight or in strong light environment.
4.Automatic random delay:After it turns on,in the delay period,if there is presence of people,it keeps on working until people leave,than turn on with delay.
5.Status indicator: efficient LED indicator,which is easy for installation and fault analysis.
6.Temperature compensation:tuodi specialized temperature compensation chip,which used to reducing the effect of temp. on detecting distance.
