SHENZHEN TUODI ELECTRONICS CO., LTD.



TDL-3003
Specification

Model No.
TDL-3003
Function discription
wirless insert card for power
Operating voltage
AC 110V~250V (50~60Hz)
Operating temp.
-20 °C ~ +50 °C
Static pwer
< 0.16W
Load power
6600W
Load current

30A

Connecting style
bipolarity
Output mode
voltage output
Delay shutdown time
15seconds
Induction mode
all kinds of cards
LED indicator
scattering beautifull blue light
Shell color
porcelaine
Service life
full-load (220v)of relay contact:>100 thousand times.
Dimension
86 * 86 mm
Range of application&Functions and Features

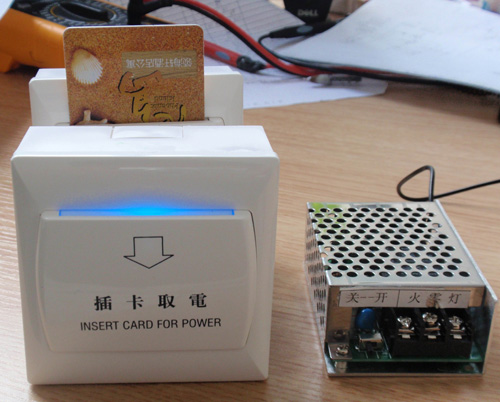

  Intelligent insert card for power switch adopts general card for power, it is energy saving .Intelligent insert card for power switch is installed on the wall beside the door of guestroom, when people come, insert the card for power, it will instantly connect the main power, all the appliances (light,air-condition,television,etc.)of the room can work. when people leave, take away the card, switch will be Automatic Power Off within 15 delay seconds. it is energy saving and safe. if you need power again, just reinsert the card..
1. LED indicator
Lighting indicator, keep pace with modern hotel and convenient to customer for night operation.
2. Wireless installation method
Insert card machine and controller adopt wireless control mode, controller is installed in electrical cabinet, card machine can be installer anywhere of the room, it is particularly convenient for reconstruction
3. Delay shutdown
When people leave, taking out the card, the main power will be automatic off in 15 seconds, it is convenient and safe.

Data Download

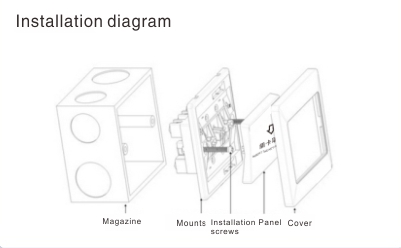

Installation connection nduction operating
diagram diagram designsketc guide
