TDL-728
Specification

Model No.

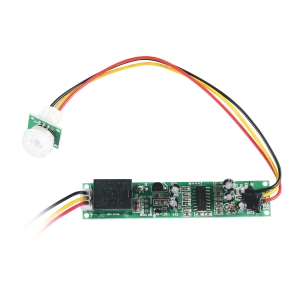

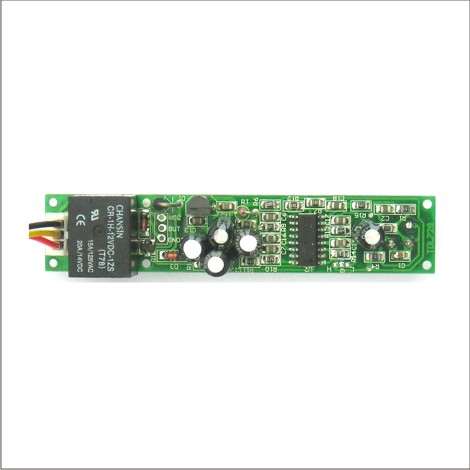

TDL-728
Function discription
infrared sensor modules,hight voltage output,wide voltage
Operating voltage
5V / 12VDC
Operating temp.
-20 °C ~ +50 °C
Static current
< 30uA
Output current
5A
Connecting style
Red-anode,Black-cathode
Yellow-output
Output mode
induction output
Light control range
adding photoactivity according to customers'requirement
Delay shutdown time
15seconds( customized )
Induction mode
passive
Induction angle
120°coning angle
Detecting distance
4~5 M
Dimension
76 * 15mm
Range of application&Functions and Features
1.Automatic induction: when people enter into the range of induction,it will turn on,when people leave,it will turn off with delay.
2.It can be applied to corridor ,passageway, toilet,basement, warehouse,garage,etc., which have the function of automatic lighting, and control.
3.luminance metering:we can add photoactivity according to customers'requirement
4.Random delay time:16seconds(customizd 2seconds~120minutes)
5.Temperature compensation:tuodi specialized temperature compensation chip,which used to reducing the effect of temp. on detecting distance.
6.Triggering mode:repeatable triggering mode,non-triggering mode(optional)
7.PIR Sensor is sepreted with mainboard,convenient for some special installation.
Data Download

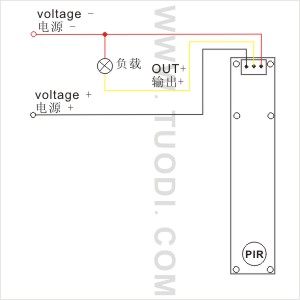

connection diagram Induction designsketc operating guide
