High power RF remote controller

SHENZHEN TUODI ELECTRONICS CO., LTD.

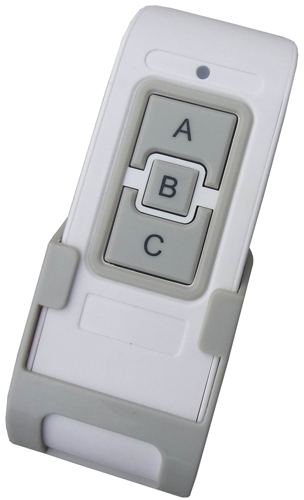

TDL-9909

Specification

>>>Instruction

Application Case

Model No.	TDL-9909
Fuction discription	3 keys remote control
Battery	23A12V
Operating current	25 mA
resonance method	SAW
Operating frequency	315MHz/ 433 MHz
Transmitting diatance	500 M (open space)
Frequency error	±75kHz(max)
Coding Type	fixed code,rolling code,million code
Dimension/packing	120 * 44 * 17 mm / plastic bag/white box
Shell color	white as main color,gray key and pedestal

Range of application

The wireless RF remote controls are widely used for data transmitting and signal control and are widely used in remote control garage, roller curtain, door locks, industrial control and wireless security alarm industry.
We can supply special request design for customer.
