tuodi electronics,infrared sensor switch,TDL-9958R

SHENZHEN TUODI ELECTRONICS CO., LTD.

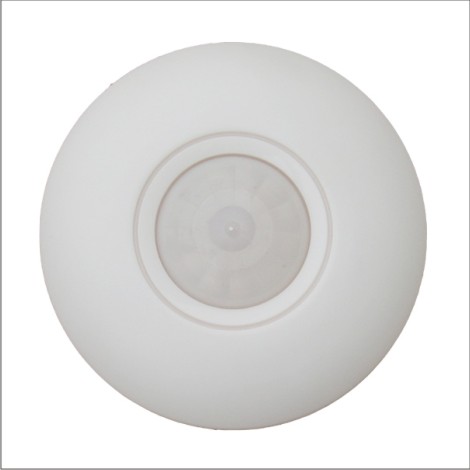

TDL-9958R

Specification

Model No.	TDL-9958R
Fuction discription	transwitch,any lights
Operating voltage	AC 110V~250V (50~60Hz)
Perating temp.	-20 °C ～ +50 °C
Static power	< 0.016W
Load power	5W~200W
Load capacity	incandescent lamp,energy saving lamp,fluorescent lamp,exhaust fan
Connecting style	unipolarity
Output mode	infrared induction
Light control range	5 Lux ~ 500Lux ± 20% （adjustable）
Delay shutdown time	16~350 Secs ± 30% （adjustable）
Induction mode	passive
Induction angle	360°coning angle
Detecting distance	7~10 M

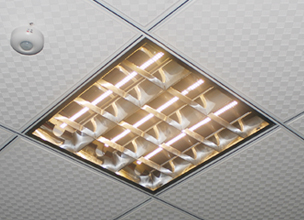

Installing method	roof inatallation./ ceiling installation
Dimension/color	89 *36 mm / porcelaine

Range of application&Functions and Features

1.Automatic induction: when people enter into the range of induction,it will turn on,when people leave,it will turn off with delay.
2.It can be applied to corridor ,passageway, toilet,basement, warehouse,garage,etc., which have the function of automatic lighting, and control.
3.Photosensitive control:it adopting photoactive control,it doesn't turn on during daylight or in strong light environment.
4.Automatic random delay:After it turns on,in the delay period,if there is presence of people,it keeps on working until people leave,than turn on with delay.
5.Status indicator: efficient LED indicator,which is easy for installation and fault analysis.
6.Temperature compensation:tuodi specialized temperature compensation chip,which used to reducing the effect of temp. on detecting distance.

Data Download

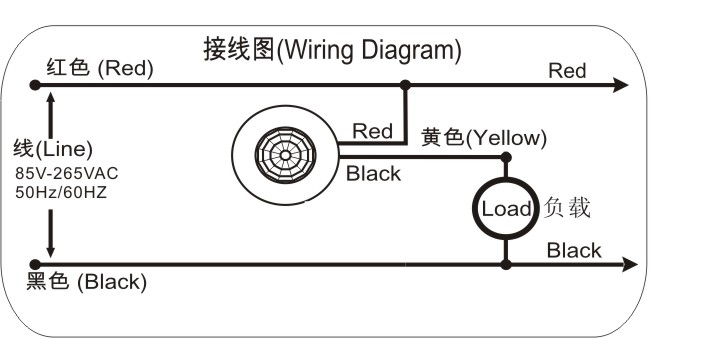

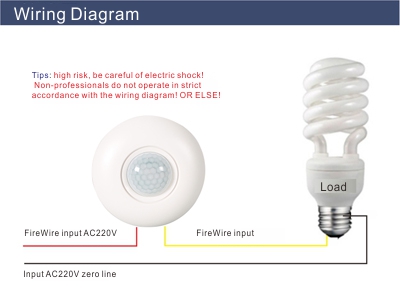

connection diagram
