SHENZHEN TUODI ELECTRONICS CO., LTD.

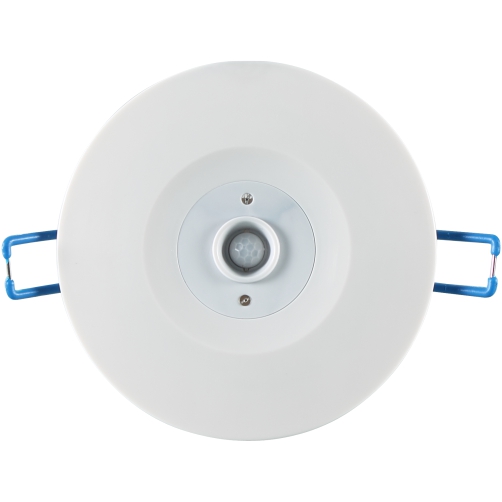

TDL-9960J
Specification


Model No.
TDL-9960J
Fuction discription
Embedded tube type, load control relay
Operating voltage
AC 110V/220V (50~60Hz)
Perating temp.
-20 °C ~ +50 °C
Static power
0.05W(220VAC
Load power
800W
Load capacity
All kinds of lighting, all kinds of electrical
Connecting style
Bipolar
Output mode
induction output
Light control range
5 Lux ~ 500Lux ± 20% (adjustable)
Delay shutdown time
16~350 Secs ± 30% (adjustable)
Induction mode
passive
Induction angle
360°coning angle
Detecting distance
5 M
Installing method
Standard 86, wall mount, suction point installation. Ceiling mounting
Dimension/color
100*100*35 mm / porcelaine
Range of application&Functions and Features
1.Automatic induction: when people enter into the range of induction,it will turn on,when people leave,it will turn off with delay.
2.It can be applied to corridor ,passageway, toilet,basement, warehouse,garage,etc., which have the function of automatic lighting, and control.
3.Photosensitive control:it adopting photoactive control,it doesn't turn on during daylight or in strong light environment.
4.Automatic random delay:After it turns on,in the delay period,if there is presence of people,it keeps on working until people leave,than turn on with delay.
5.Status indicator: efficient LED indicator,which is easy for installation and fault analysis.
6.Temperature compensation:tuodi specialized temperature compensation chip,which used to reducing the effect of temp. on detecting distance.
Data Download
connection diagram Induction designsketc operating guide
