SHENZHEN TUODI ELECTRONICS CO., LTD.

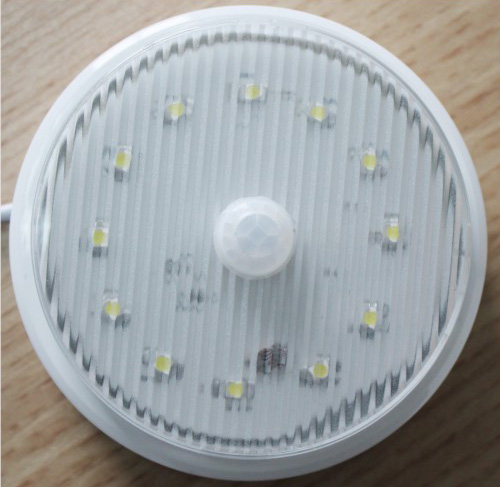

TDL-12LED
Product Discription



Installation bottom box

Adopt advanced LED technology with high efficiency and advanced Infrared detection sensor technology.Internally installed Environmental temperature compensation circuit and supply voltage regulator control circuit .The whole circuit with optimized design,and adopting material with high quality and high precision , is enjoying a great popularityover the world.
Function and Features
Adopting advanced LED technology: high efficiency, energy saving, environmental, long service time, anti-explosive.
Adopting advanced Infrared detection sensor technology, highly sensitive, anti-disturbance, quick response.
Delicate appearance design and it is light and fashionable.
Reasonable structural design, only 2 screws are needed for installation..
Internally installed light perception component, and can automatically identify daylight or night. STBY Standby at daylight ,induction lighting at night.
Specification

Induction mode: infrared sensor
Induction control: built-in light sensor.
Induction sensitive distance:>3m
Induction sensitive Angle: 120
Number of light: 12
Service time: above 80 thousand hours
Power: 3w
Color: white /worm white(optional)
STDBY power consumption: 0.015w
Operating voltage:85-265VAC
Delay time: 15second
Favorable temp & humidity: -5℃-38℃, 5%-93%
Dimension:85*26mm
Storage temp:-10℃-40℃
Weight: 100g

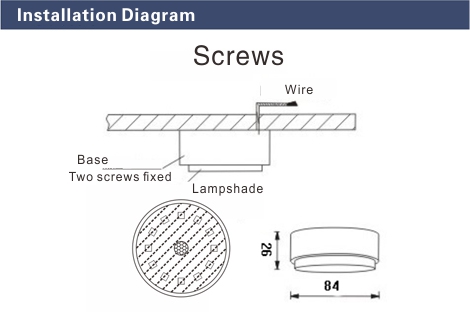

Installing method
Screw fixation
Attentions
This light is internally installed light sensor,it is maybe unable to work in daylight, you can modify the operating mode according to your need.
This light is not waterproof, and need not installed in any place with much rain, heavy humidity, and low temp, very changeable light.
Sensor light should not be set beside the window, or any place with strong light environment.
Range of application
Doorway,stairway, stair, attic,inner room,The basement, garage, the cellar, wardrobe, hotel ambrywardrobe , kitchen cupboards, bookcase
Data Download
wiring diagram induction designsketch operating guide
