| TDL-5002 |
| low current,hihgt voltage(no relay)TDL-5002 |
high current,high
voltage(3Arelay)TDL-5002-DC
|
| Modle No. |
TDL-5002 |
TDL-5002-DC |
Functional description
|
Sensor modules,high voltage
output, broad voltage |
Sensor modules,high voltage
output |
| Operating voltage |
5V-24VDC |
12VDC |
| Perating temp. |
-20 °C ～ +50 °C |
-20 °C ～ +50 °C |
| Static current |
< 18mA |
< 18mA |
| Output current |
5mA |
3A |
| Load capacity |
Audion driven,singlechip port |
relay |
| Connecting way |
Red-anode,Black-cathode
Yellow-output |
Red-anode,Black-cathode
Yellow-output |
| Output mode |
induction output |
induction output |
| optical control range |
|
|
| Delay shutdown time |
|
|
| Induction style |
active |
active |
| Induction angle |
35°coning angle |
35°coning angle |
| Detecting distance |
1~150C M |
1~150C M |
| Detecting dimension |
22×28mm |
22×.8mm |
| Dimension |
22.5×28mm |
22.5×28mm |
|
 |
 |
Low cost full-automaticinfrared
sensor
（induction lamphouse、
Shower Head controller ）
circuit board integration——TDL-5002
(High power,battery
supply is not suitable)
|
- Automatic detecting distance setting:setting
detecting distance according to application environment(manual
operation is optional),the distance is stable ,having a strong
ability to prevent parasitic light.
- Low cost, powerful function:multi-purpose
of one boar, it can be applied to
lamphouse and long-distance sensor switch,having
the function of tap,Urinal,Blunt device, Shower Head,etc. infrared
emission,receiving,intellgent effluent control,PEMF hydrovalve
driven,stable and reliable.
- Seal shell、light diaphragm,and
waterproof:it
is easy for installition and seal of circuit
,to realize real integration.
- Software
can be uesed for different purpose:we programme
different programs,we can create different functions.which can
be used for various conditions.
|
|
|
|
Infared

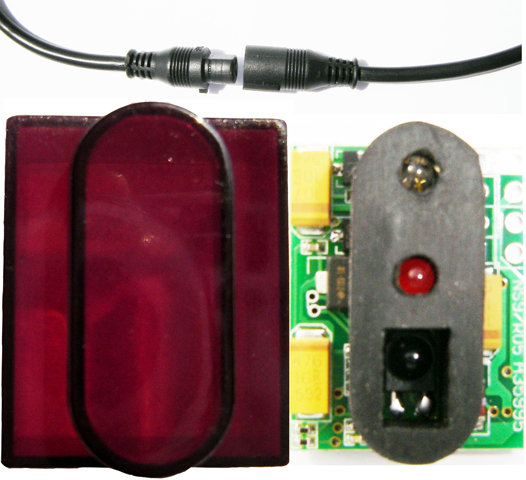

sensor circuit board integration(29mm×25mm) |
Seal
shell、light diaphragm,and waterproof |
|
|
|
|
|
|
|
- Profession provide:
- infrared sensorsanitary appliance circuit board, emission,receiving,Seal
shell、light diaphragm,andPEMF
hydrovalve.
- 2~4 core waterproof connector.
-
customized
- undertaking design and development of infrared sensorsanitary
appliances,and other singlechip applied products
|
Strong
developing team,specializing manufacture,low cost,better service!
provide sample test,Welcome Patrons! |
| |
|
|
|
