SHENZHEN TUODI ELECTRONICS CO., LTD.

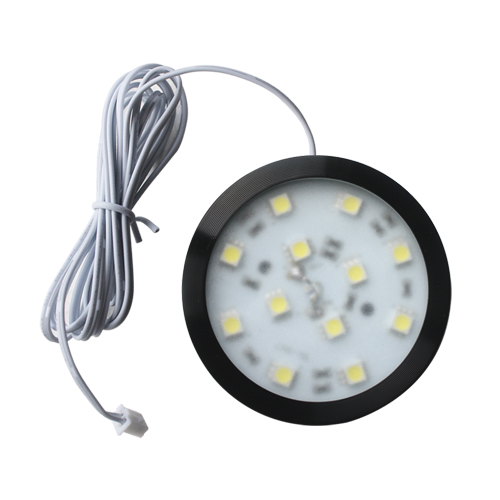

TDL-5011B
Product Discription


Ambry

Drawer Installation





Adopt most advanced aluminium alloy wire drawing teconology .it is optimized design,adopting material with high quality and high precision , and it is easy to install which is enjoying a high population in the world.
Function and Features
1.Adopting advanced LED technology: high efficiency, energy saving, environmental, long service time, anti-explosive.
2.Delicate appearance design and it is light and fashionable.
3.Reasonable structural design, concealed fastening.
Specification
Led Service time :> 80000h
Color: white /worm white(optional)
Power:12VDC
Power:2.2W
Lum: 72LM
Operating current:184ma
Favorable temp & humidity: -5℃-38℃, 5%-93%
Dimension:70*6.7mm
Weight: 58g
Storage temp:-10℃-50℃
Installing method
Screw fixation
Attentions
Operating temp must be controlled between -5℃-40℃
This light is not waterproof, and need not installed in any place with much rain.
Range of application
wardrobe, ambry, kitchen cupboards, the hotel wardrobe, bookcase, and so on.
Data Download
Installing diagram wiring diagram induction designsketch operating guide
