SHENZHEN TUODI ELECTRONICS CO., LTD.

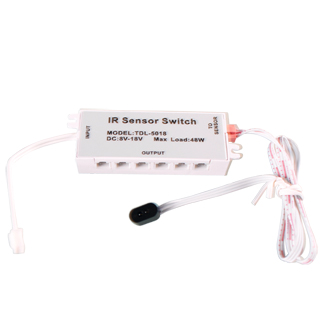

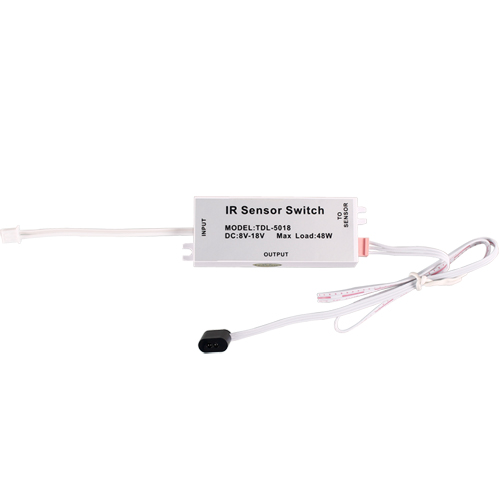

TDL-5018
Specification

Model No.
TDL-5018
Function discription
Power-output high, when there is a low level sensor output, the output high when no induction.
Operating voltage
12VDC
Operating temp.
-20 °C ～ +50 °C
Quiescent Current
<5uA
Output Current
0-12A
Load capacity
0-220W
Output mode
Sensor Output
Delay Range
No
Light control range
No
Induction way
Active
Induction angle
35 degree cone angle
Detecting distance
1-10CM
Dimension
73.4 * 30* 13.4mm
Range of application&Functions and Features
1. The person to output, delay shut down automatically after people leave,
2. For automatic sensor trash can, auto-sensing shoe polisher, automatic sensor faucets, sensor smart billboard advertising machine, dryers, sensor light box, LED light bar sensor switch, auto-sensing lights wardrobe cabinets and other intelligent sensor product features ..
3. The need for more explanation, please download the instructions Xiangxi
The random delay: 1 seconds (can be customized according to customer requirements, customized)
5. Xiangxi need more installation instructions, please download and install instructions.
Data Download
connection diagram Induction designsketc operating guide
