SHENZHEN TUODI ELECTRONICS CO., LTD.
| TDL-5022A | |||||
| Specification： |
|
||||
| Service
time :> 80000h Color: white/warm white Operating current: 165MA Power: 2W Lum: 97LM Work voltage:12VDC Operating temperature:-10-50 Size: 64.5*15mm Weight: 49g |
|||||
| Feature: | |||||

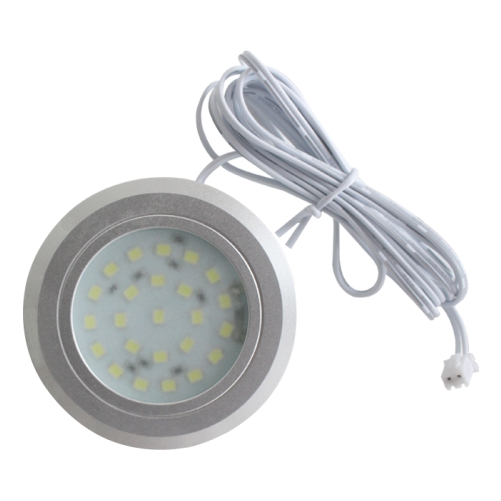

| 1.Recessed
touch senor Led cabinet light 2.Light touch, touch again once the lights; |
|||||
| Installation: | |||||
| 1.

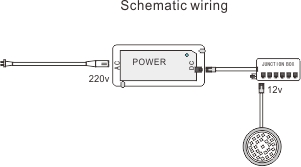

Recessed installation 2. Schematic wiring |
|||||
| Attention: | |||||
| 1.
With light sensor it only works at night or in the darkness 2. don’t install in a place with strong wind and heat to avoid any false triggering 3. The operating temperature should be -5°C~40°C.otherwise there may be false triggering. 4. The Light is not waterproof; don’t install it in any place with heavy water and humidity. |
|||||
| Range of application | |||||
|
It widely used in cabinet, corridor, stairs, closet, children’s room,
bedroom, bathroom and kitchen room… |
|||||
| Data Download | |||||
 Installing
diagram |
wiring
diagram |
induction
designsketch |
operating
guide |
||
 |
|||||
| |
