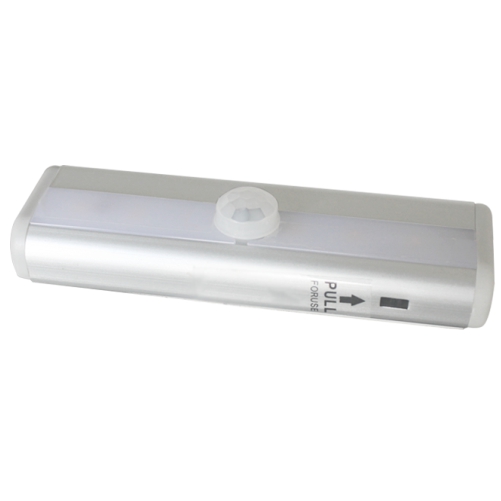

TDL-7121A
Specification:

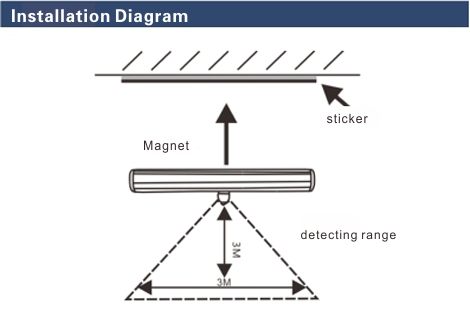

Typcal Installation



Switch:PIR sensor
Detecting angle: 120 degree
Detecting distance: 3m
Service time :> 80000h
Color: white/warm white
Operating current: 120MA
Voltage: 5V
Power:0.3W
Lum: 19LM
Operating temperature:-10-50
Size: 98*30*16mm
Weight:67 g (including lithium battery)
Feature:
1. pir sensor +light sensor
2.  rechargeable lithium battery
Installation:
1. The double-sided adhesive stickers
2. The magnetic base
Attention:

1. With light sensor it only works at night or in the darkness
2. don’t install in a place with strong wind and heat to avoid any false triggering
3. The operating temperature should be -5°C~40°C. otherwise there may be false triggering.
4. The Light is not waterproof; don’t install it in any place with heavy water and humidity.

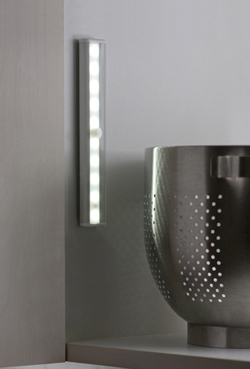

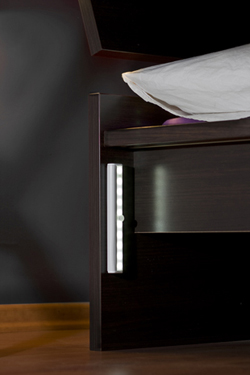

Range of application
Doorway,stairway, stair, attic,inner room,The basement, garage, the cellar, wardrobe, hotel ambry wardrobe , kitchen cupboards, bookcase, in-room safe, tents, car back box.
Data Download
wiring diagram induction designsketch operating guide
